Features – infrADAC

Your solution to ADAC XML design

IMPORT/EXPORT CONTROLS.

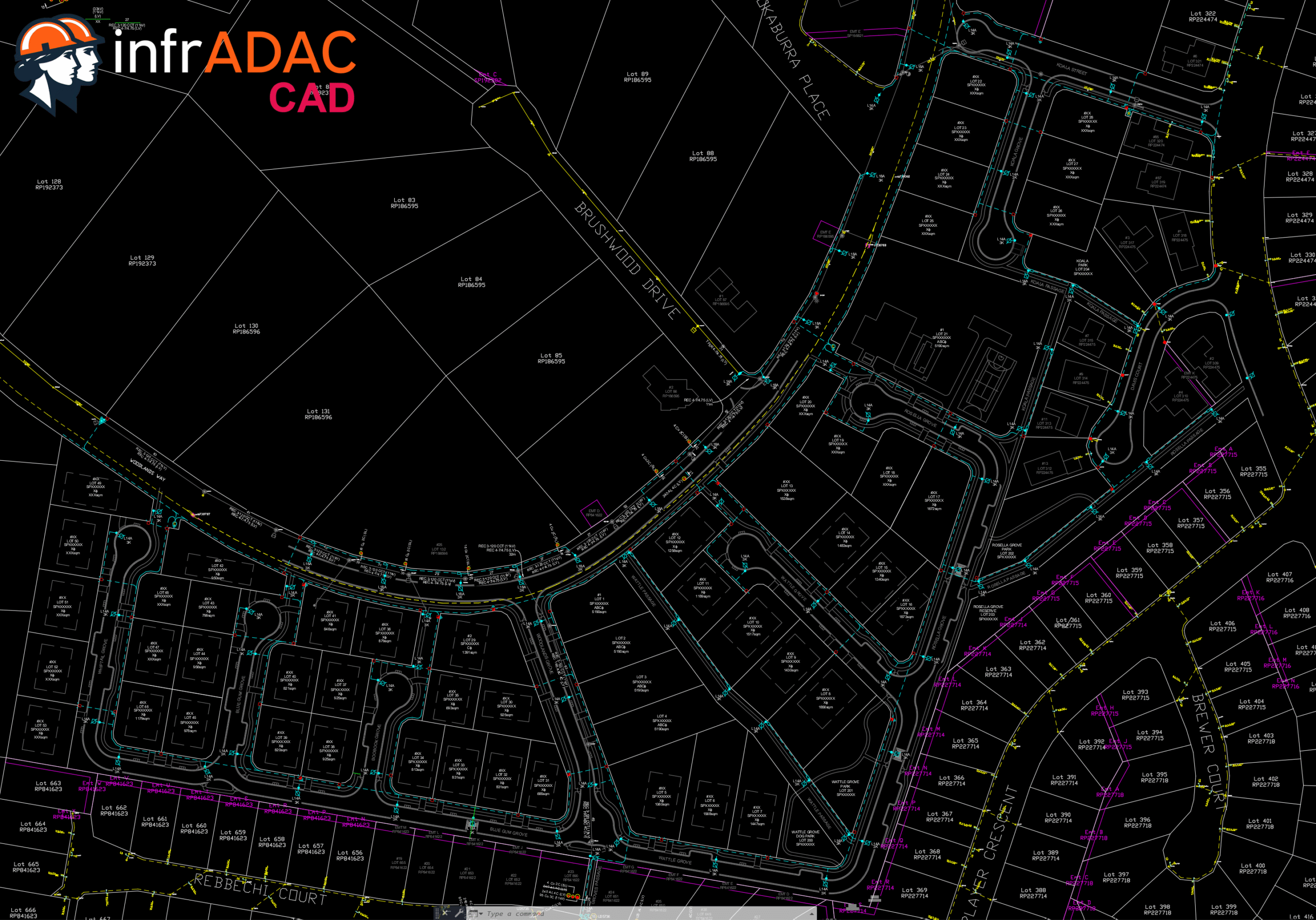

Work with ADAC XML directly in AutoCAD

infrADAC CAD allows you to open, edit, and save ADAC XML data seamlessly within AutoCAD. By integrating ADAC directly into the model space, you remove the need for external processing tools or format conversions. This ensures your drawings and data can remain synchronised at all times. Keep your focus on design while the infrADAC CAD manages compliance with the ADAC XML schema.

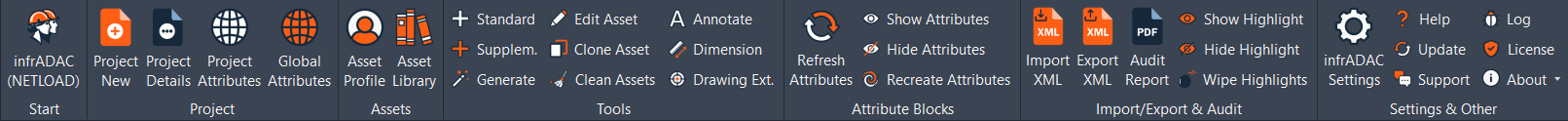

Ribbon bar and command support included for ease of use.

DESIGN FOR ACCURACY.

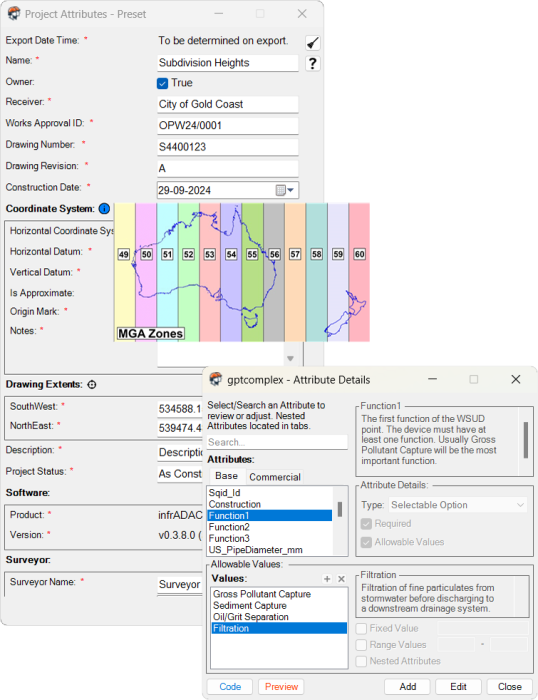

Asset & project attributes structured from the ADAC XML Data Dictionary

All asset and project information is structured in line with the official ADAC XML Data Dictionary. infrADAC CAD automatically enforces attribute consistency, reducing the risk of manual entry errors or non-compliance. With properties mapped directly to the data dictionary, every asset remains properly defined and standardised across projects. This streamlines collaboration and guarantees outputs that align with ADAC XML submission requirements.

infrADAC CAD is also fully backwards compatible with all versions of ADAC XML, allowing you to open and work with older data sets. If your organisation requires continued use of earlier versions of the standard, infrADAC CAD ensures your quality assessments remain aligned with those requirements.

VERIFY. SUBMIT. ACCEPT.

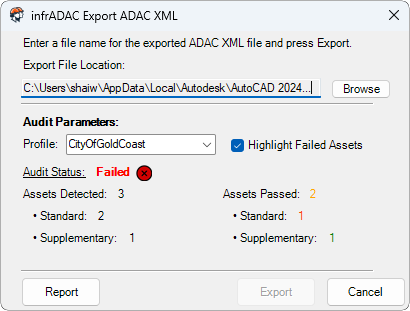

Generate and validate any ADAC XML submission with confidence

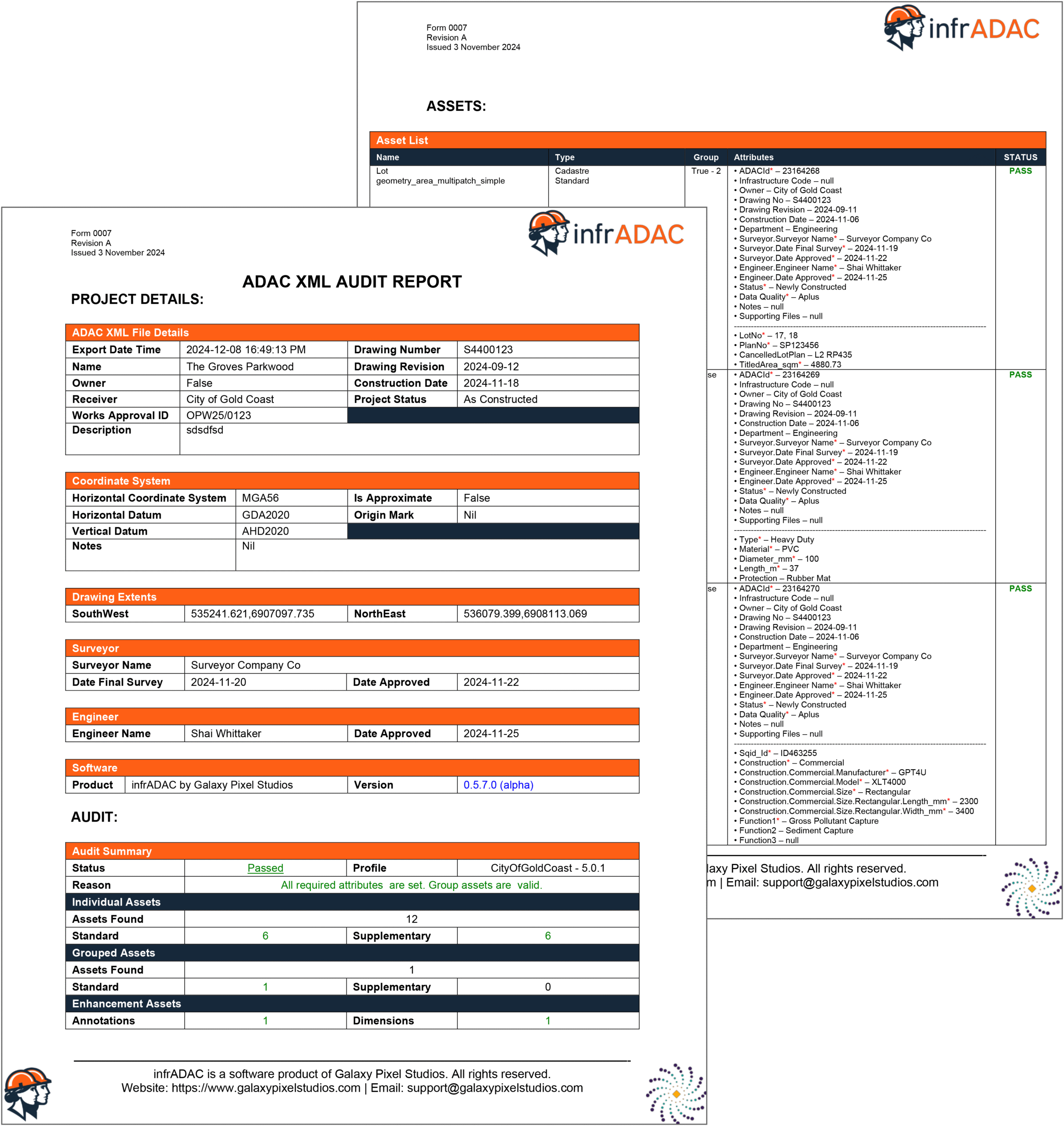

infrADAC CAD generates complete ADAC XML files directly from your design environment, eliminating the need for external validation steps. Each submission is automatically checked against the ADAC XML schema to confirm full compliance before delivery. A detailed audit report is also produced, giving organisations a clear and consistent way to review submissions while saving time and cost.

In addition to files created within infrADAC CAD, the software can also validate and audit ADAC XML submissions generated from other systems. Together, this process reduces the risk of costly rejections and provides confidence that every XML file is accurate, reliable, and ready for approval.

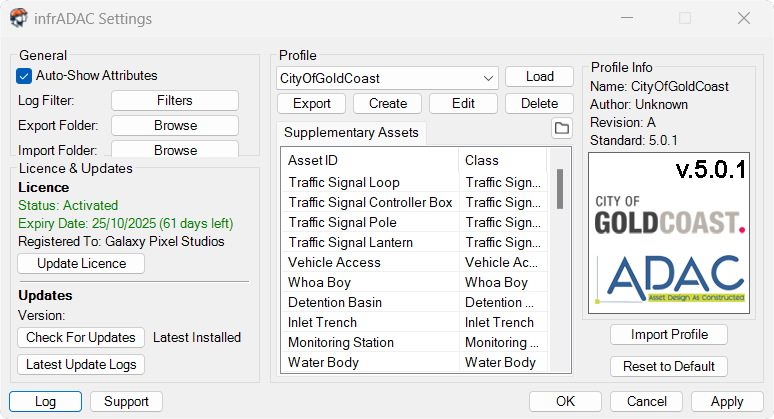

Council and Authority Profiles Available on Purchase

Get setup quickly with precompiled profiles made to ensure compliance.

CREATE & MANAGE.

Full Asset & Profile Control

Gain complete oversight of every asset and profile in your project. infrADAC CAD enables you to configure profiles for Councils and Authorities, ensuring asset and project data meet specific submission requirements.

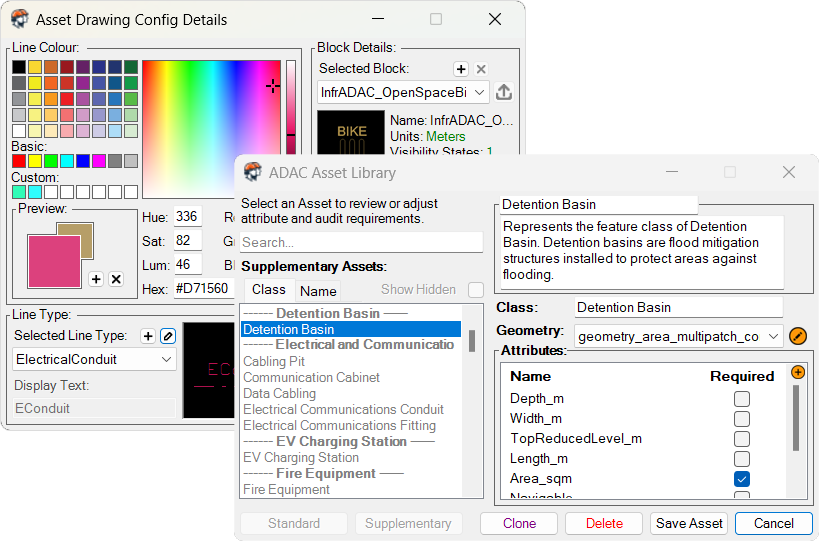

infrADAC CAD includes full support for Supplementary Assets, giving you the ability to develop new assets and control their visual representation directly within AutoCAD. Complex geometry is fully supported, along with the ability to attach supplementary files such as documentation or imagery to assets.

This combination of flexibility and precision provides end-to-end control, making it easier to deliver submissions that are both compliant and comprehensive.

The most advanced ADAC XML file viewer, directly in your browser, 100% free.

VISUALISE YOUR DATA

Make real time ADAC XML management a reality with infrADAC Map

Seamlessly explore, validate, and present ADAC XML data in a modern, interactive map environment. Built to replace outdated workflows, infrADAC Map gives you clarity and control over your asset information.

Multifile Interactive Viewer

Council/Utility Region Check

Full Asset Inspection

Measurement Tools

Advanced Layer Control

Project Level Auditing

Supporting Files Integration

Phone/Tablet Compatible

Ready to get started?

Access infrADAC CAD today and streamline the creation, validation, and delivery of ADAC XML files.
