infrADAC ACAD adds a ribbon and command workflow to AutoCAD for project setup, receiver profiles, structured assets, audit and export. The ADAC data stays connected to the drawing geometry used to create it.

AutoCAD

  • AutoCAD 2024 Not supported
  • AutoCAD 2025 Supported
  • AutoCAD 2026 Supported
  • AutoCAD 2027 Pending confirmation
Request a 30 Day trial Open the user manual
infrADAC

Capabilities

The complete AutoCAD workflow from drawing to delivery.

Use familiar AutoCAD selection and model space feedback while infrADAC manages the project structure, asset definitions and ADAC output.

Start from the dedicated infrADAC ribbon

Access project, asset, audit and delivery commands from the installed AutoCAD ribbon.

Manage your Project and Global attributes.

Set the receiver profile, project information, drawing extents and shared attribute values in one connected workflow.

Accurate geometry everytime

Create standard and supplementary ADAC assets from supported AutoCAD geometry while retaining the drawing connection.

Edit, clone and easily find assets

Maintain assets in model space and return directly to the drawing object that needs attention.

Add Enhancement assets easily.

Add supported annotations and dimensions alongside the ADAC asset data.

Process assets efficiently in bulk

Create lots, easements, contours, spot heights and breaklines in bulk with ground surface and flow direction tools for supported assets.

Import, audit and export

Import supported ADAC XML or CSV data, run the selected receiver checks, then export the ADAC XML and DOCX audit report.

AutoCAD workspace

Start from the infrADAC ribbon.

Show the ACAD ribbon, project controls and active AutoCAD drawing.

infrADAC ACAD ribbon and project setup in AutoCAD

Host integration

How ACAD works in AutoCAD.

AutoCAD ribbon and commands

ACAD installs its host interface into supported AutoCAD releases and uses native drawing selection, entities and model space feedback.

Infrastructure asset coverage

The implemented libraries cover cadastre, open space, sewerage, stormwater, transport, water supply and surface assets.

Audit linked to the drawing

Audit findings can be located against the drawing so the user can return directly to the asset that needs attention.

Workflow

From setup to a reviewable ADAC delivery.

  1. 01

    Configure

    Create the project, select the receiver profile and set drawing extents and reusable attribute values.

  2. 02

    Create

    Generate or import assets, complete their structured attributes and maintain them as the design changes.

  3. 03

    Audit

    Run the profile checks and work through the reported assets in the drawing.

  4. 04

    Deliver

    Export the ADAC XML, DOCX audit report and supporting project files.

Asset authoring

Turn drawing geometry into structured assets.

Show standard or supplementary asset selection with the source geometry visible in model space.

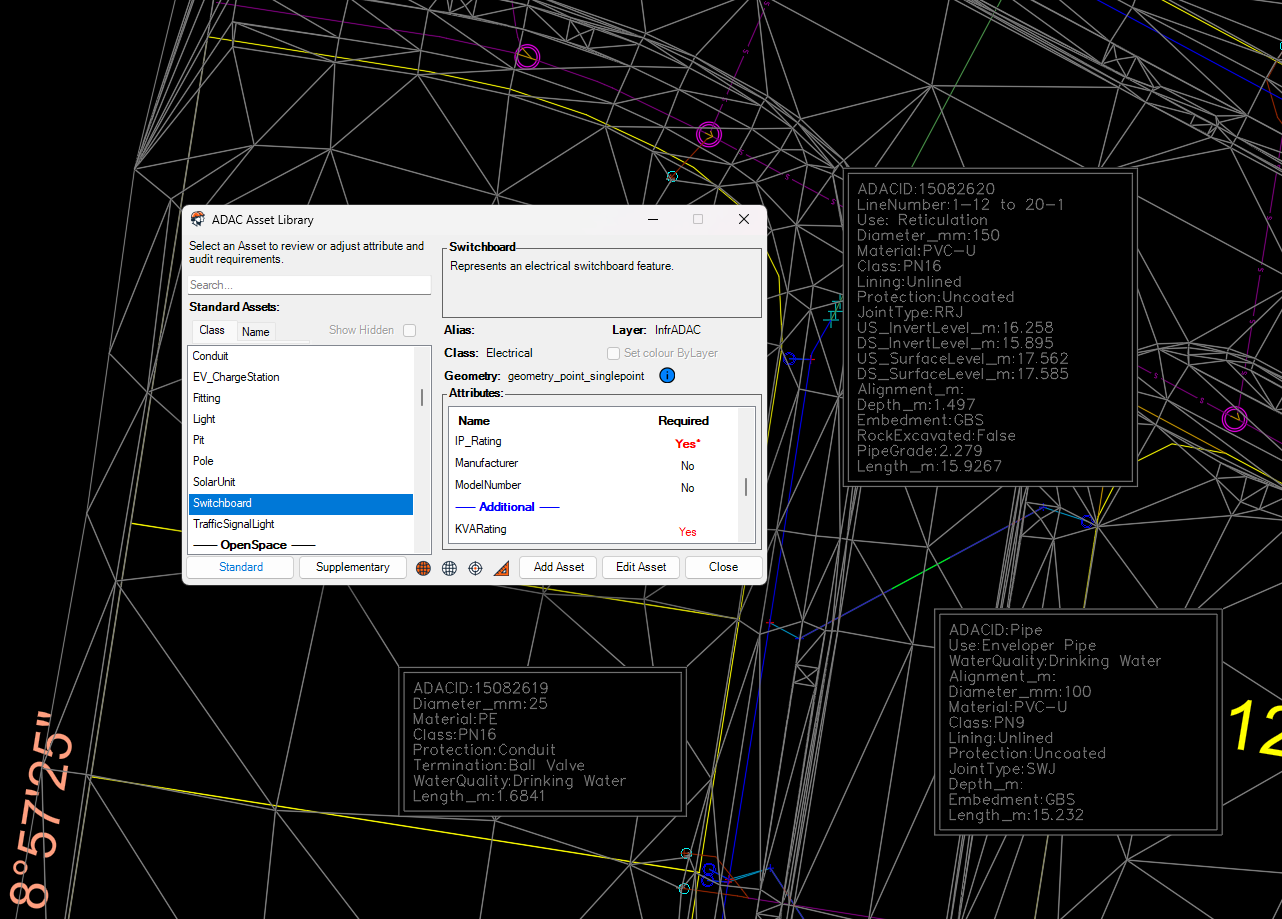

Generate and edit an ADAC asset in AutoCAD

Receiver profiles

Council and Utility Profiles available for ACAD.

Each individual profile shows the ADAC Schema versions currently supported by the catalogue.

  • Shellharbour City Councilv5.0.1
  • Tweed Shire Councilv5.0.1
  • Wollondilly Shire Councilv5.0.1
  • Bundaberg Regional Councilv4.1 · v4.2
  • City of Gold Coastv4.2 · v5.0.1 · v6.0.0
  • City of Ipswichv5.0.1
  • City of Moreton Bayv4.2 · v5.0.1
  • Gladstone Regional Councilv4.1 · v5.0.1
  • Gympie Regional Councilv4.1 · v4.2
  • Logan City Councilv5.0.1
  • Mackay Regional Councilv4.1 · v5.0.1
  • Noosa Councilv4.2 · v5.0.1
  • Port of Brisbanev4.1
  • Redland City Councilv4.1
  • Rockhampton Regional Councilv5.0.1 · v6.0.0
  • Sunshine Coast Councilv5.0.1 · v6.0.0
View profile pricing

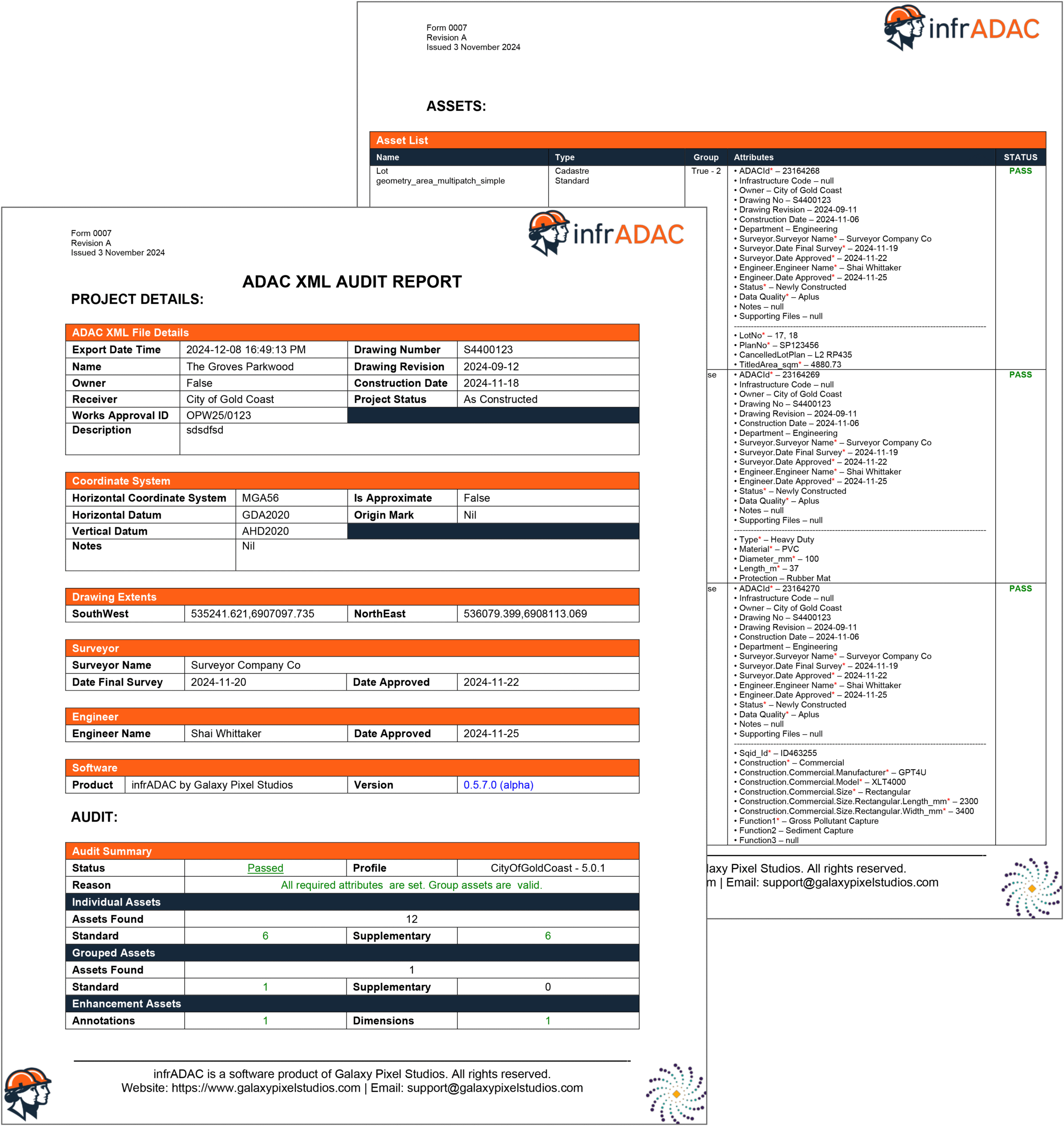

ACAD audit results and export deliverables

Delivery

Resolve audit findings and export.

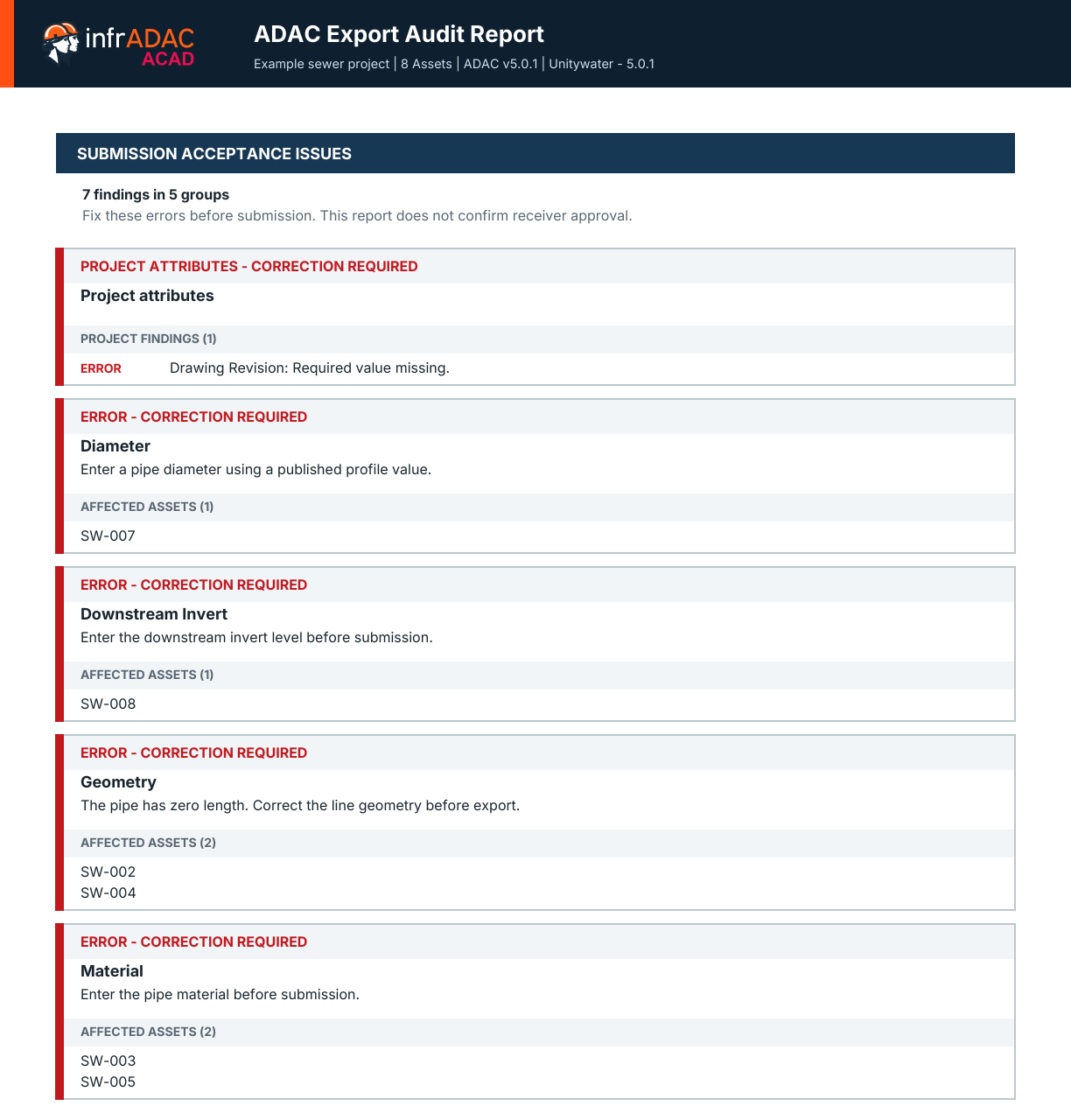

Show the audit results beside highlighted drawing assets and the completed export controls.

infrADAC Map Pro

Included with every active ACAD licence

Continue the submission workflow in Map Pro.

Each active ACAD seat includes Map Pro access. The receiver profiles purchased for the Plugin remain available to the same account in Map Pro.

Full audit evidenceReview component scores, project data and detailed findings for every asset.
Enhanced preparationUse profile controlled Edit and previewed Clean operations before delivery.
Compare and restructureCompare XML deliveries and use controlled Merge/Split workflows in the browser.
Explore Map Pro

Licensing

Licence ACAD for the way your team works.

infrADAC ACAD is licensed annually per seat.

$800 AUD Annual, excluding GST

Computer Based

Assigned to one registered computer and included with the selected ACAD seat.

Floating

One annual Bolt-on for the selected ACAD licence pool with one active checkout for each purchased seat.

Network Floating

One annual Bolt-on for local network checkout from the selected ACAD licence pool.

View current pricingRequest a 30 Day trial

Current release

Current release, notes and installer information.

infrADAC Plugin Tools 1.4.2.0infrADAC DCAD v1.4.2Release notes
