Connect native 12d Model geometry to an ADAC delivery workflow.
Use the infrADAC panel and toolbar in 12d Model for project setup, defaults, assets, audit, exchange and library tools. The connected workspace can inspect existing native ADAC records and their nested attributes.
Supported host releases
12d Model
12d Model 15
- 12d Model 14 Pending confirmation
- 12d Model 15 Supported
Version-specific 12d macros are installed to the selected 12d UserPath.
Capabilities
An ADAC workflow connected to 12d Model.
DCAD exposes the operations implemented for native 12d elements and keeps the project, profile, attributes and ADAC output connected through the installed bridge.

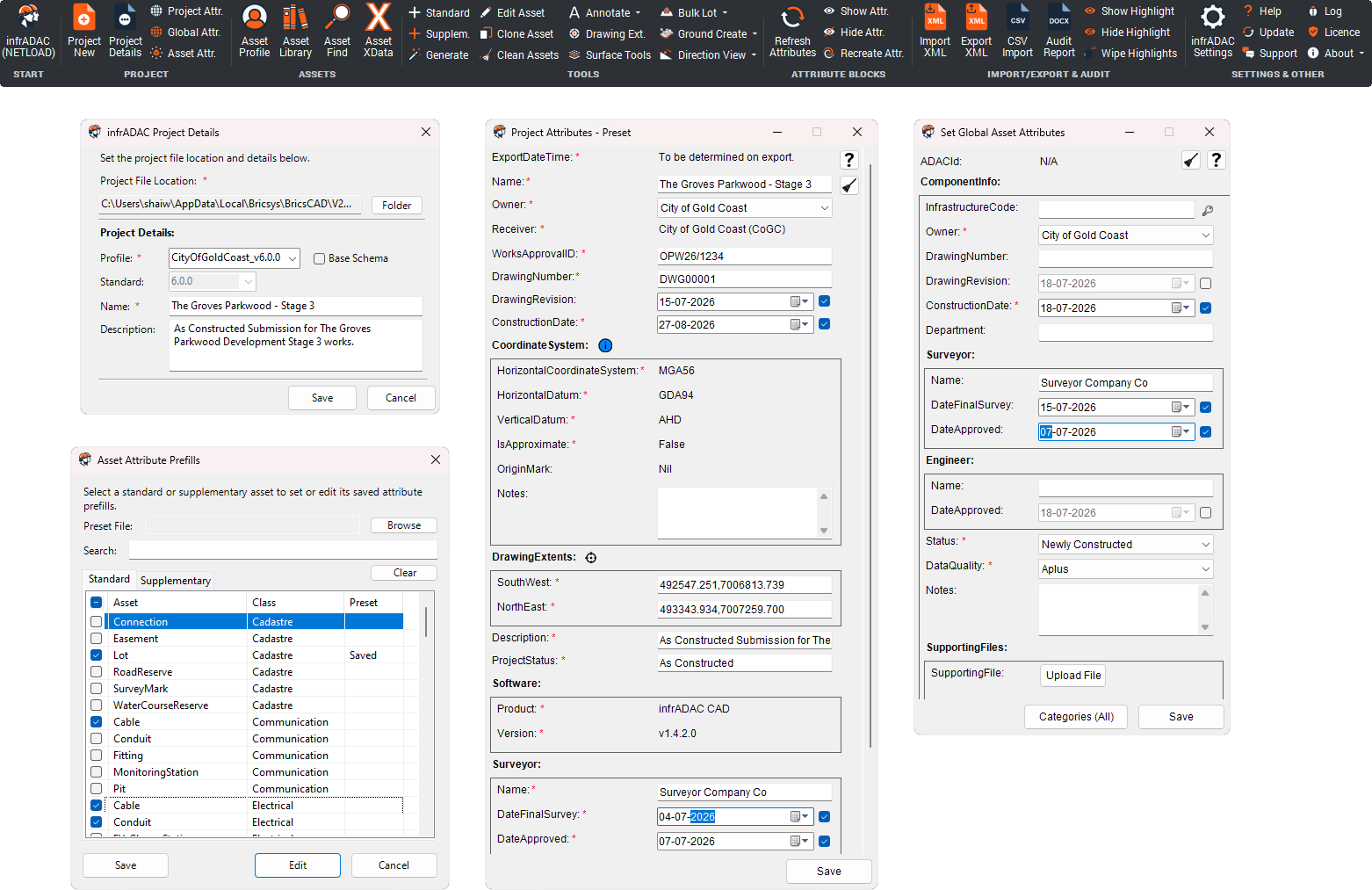

Start from the dedicated infrADAC toolbar
Launch supported workflows from the installed infrADAC toolbar in 12d Model.
Project and shared attributes
Maintain project details and shared attributes, select the receiver profile and load its applicable asset libraries.
Assets from your geometry
Select compatible native 12d elements and apply the matching ADAC asset structure without recreating the source geometry.
Edit, clone and easily find assets
Work with native model and element identifiers, place clones at selected Plan positions and locate assets through the project inventory.
Annotations and dimensions
Apply supported ADAC annotation and dimension data to selected native 12d Text and Dimension elements.
Process assets efficiently in bulk
Process lots, easements, contours, spot heights and breaklines with native selection and the supported interactive assignment tools.
Import, audit and export

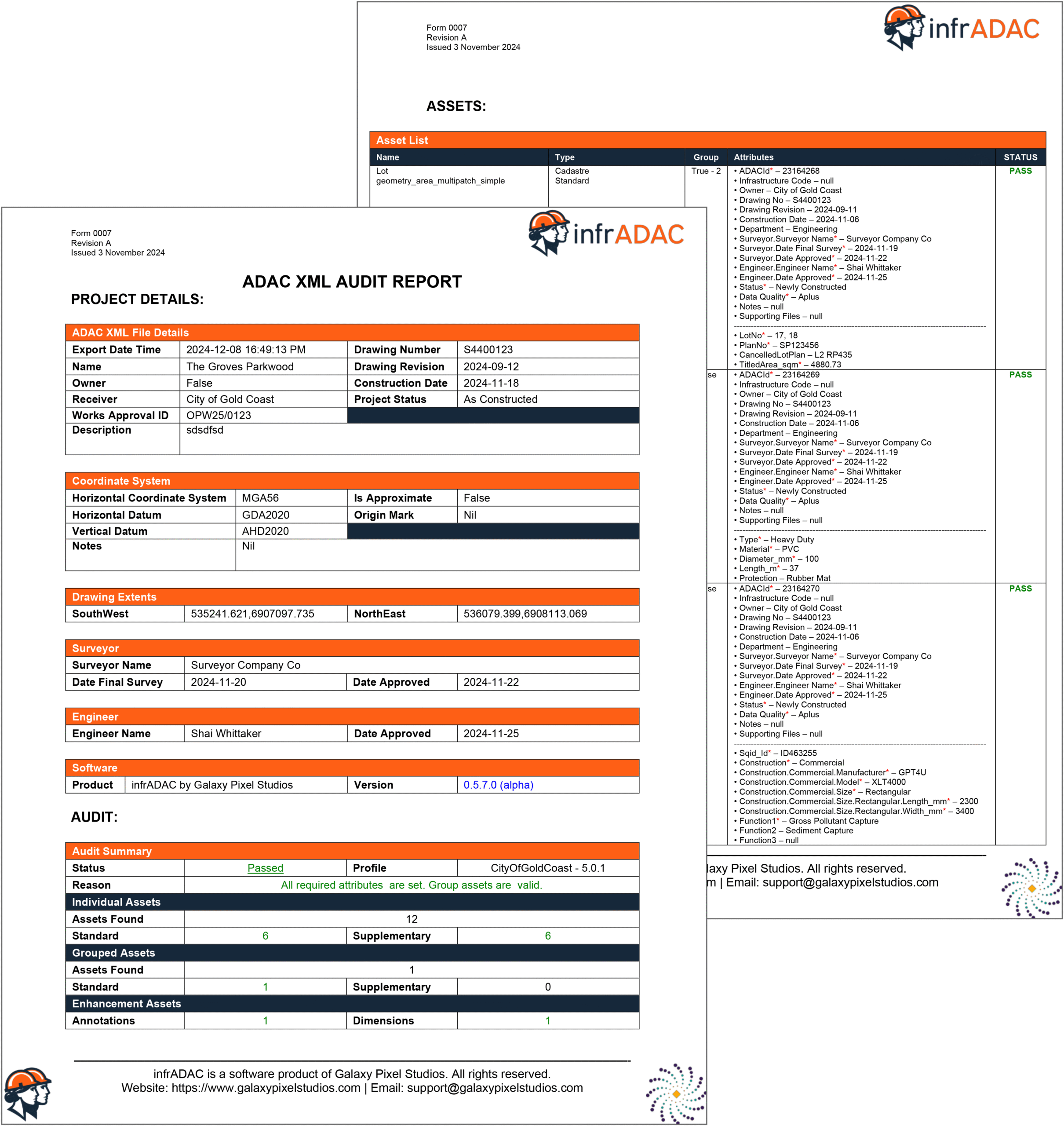

Import ADAC XML into native models and elements, audit flat and native nested ADAC attributes, export ADAC XML and produce the PDF audit report.
Project setup
Configure the project and receiver.

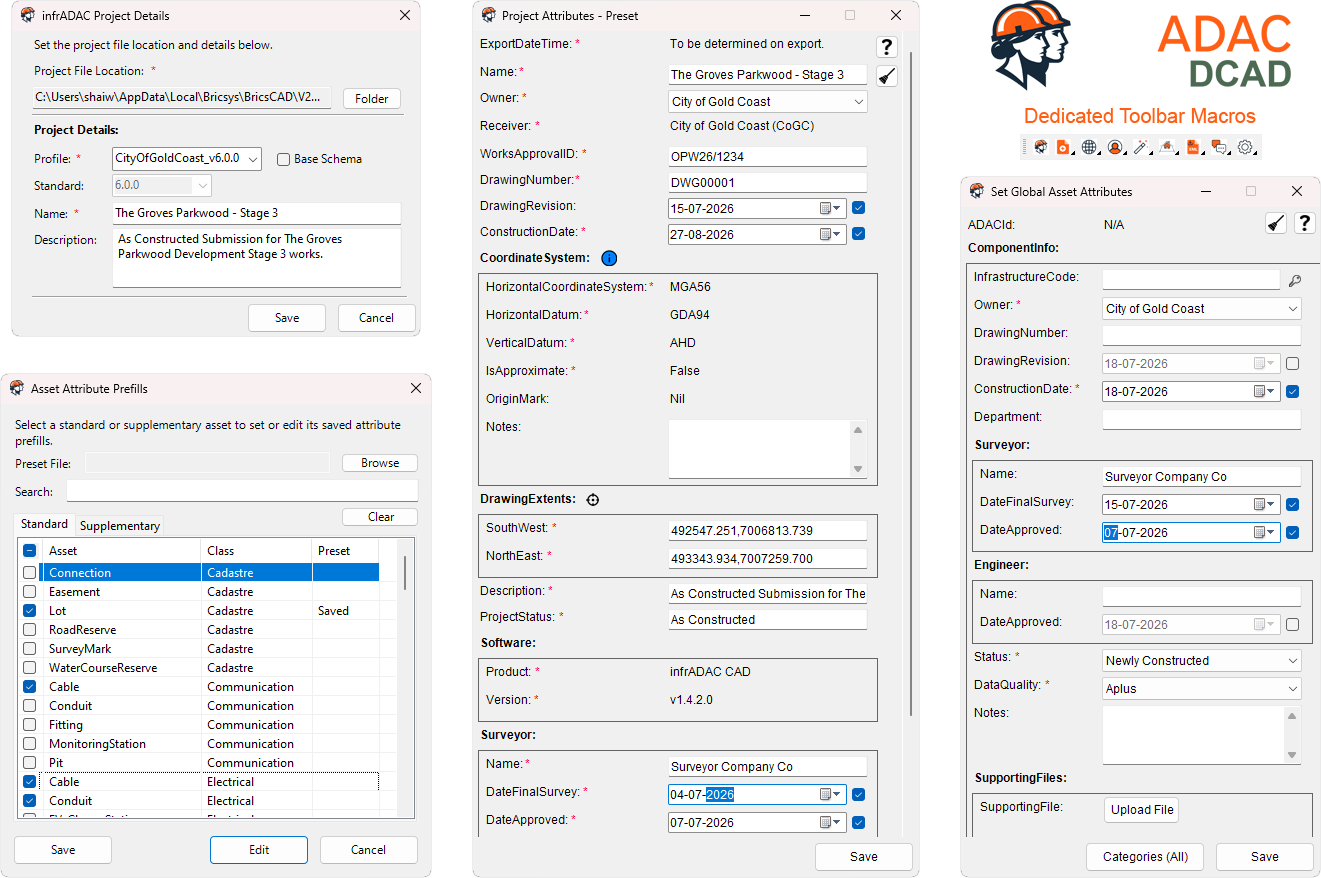

Set project details, receiver profiles and shared attributes before creating the ADAC delivery.
Host integration
How DCAD works in 12d Model.
Connected host architecture
The desktop application handles forms and services while the installed bridge performs the supported native 12d project and element operations.
Native attribute continuity
DCAD reads flat infrADAC values and native nested ADAC paths, normalises them for audit and export and preserves supported native paths.
Implemented 12d scope
The public workflow covers the documented native generate, edit, clone, find, annotation, dimension, bulk, import, audit and export routes. DCAD also provides native direction metadata and owned audit displays. Ground creation, definition and reset remain specific to the supported CAD editions.
Workflow
From setup to a reviewable ADAC delivery.
- 01
Launch
Start the required command from the dedicated infrADAC toolbar in the active 12d Model project.
- 02
Configure
Complete the connected project, receiver profile, library and reusable attribute setup.
- 03
Build
Select supported native elements and generate, edit or apply the required ADAC asset data in bulk.
- 04
Deliver
Audit the project, resolve reported data issues and export the ADAC XML and PDF report.
Asset authoring

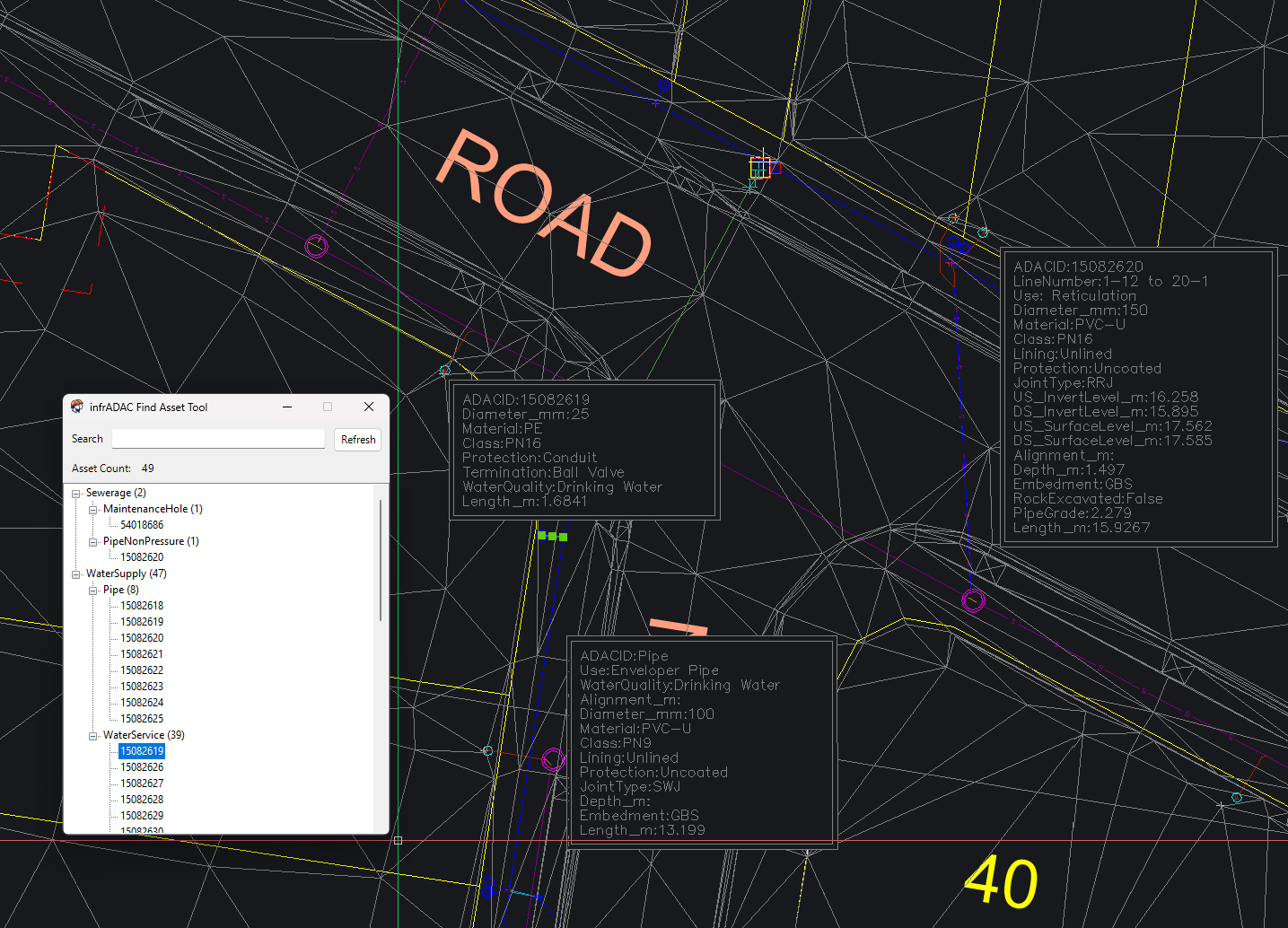

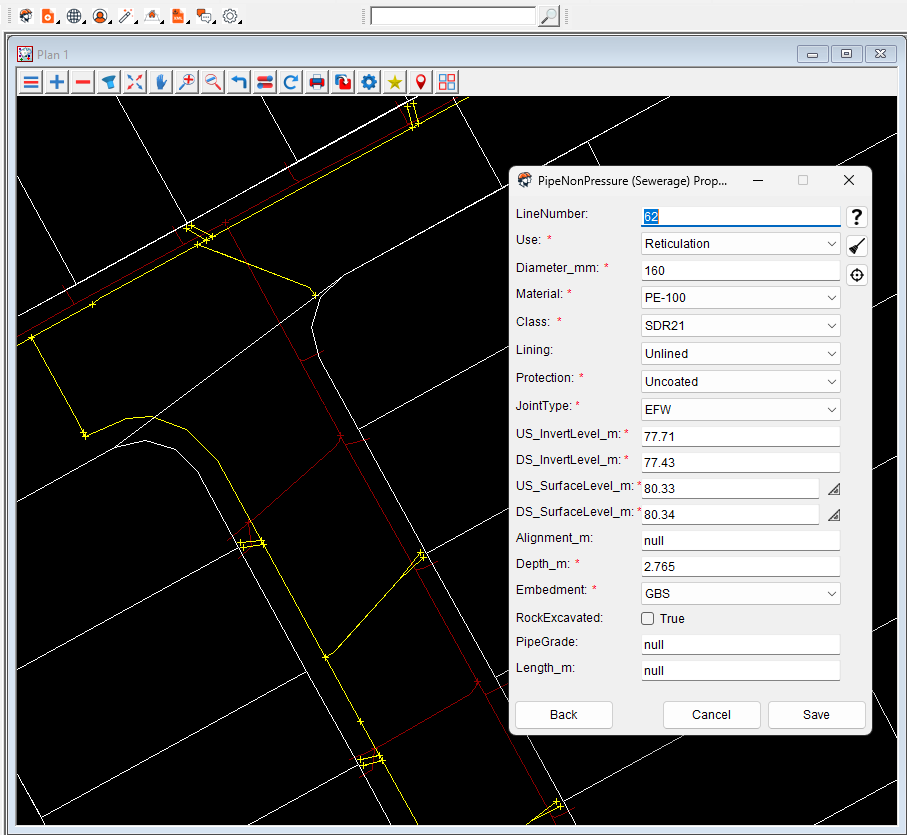

Inspect and edit structured asset data.
Review the asset definitions and attributes used in the ADAC delivery.
Receiver profiles
Council and Utility Profiles available for DCAD.
Each individual profile shows the ADAC Schema versions currently supported by the catalogue.
-
Port of Brisbanev4.1
-
Shellharbour City Councilv5.0.1
-
Tweed Shire Councilv5.0.1
-
Wollondilly Shire Councilv5.0.1
-
Bundaberg Regional Councilv4.1 · v4.2
-
City of Gold Coastv4.2 · v5.0.1 · v6.0.0
-
City of Ipswichv5.0.1
-
City of Moreton Bayv4.2 · v5.0.1
-
Gladstone Regional Councilv4.1 · v5.0.1
-
Gympie Regional Councilv4.1 · v4.2
-
Logan City Councilv5.0.1
-
Mackay Regional Councilv4.1 · v5.0.1
-
Noosa Councilv4.2 · v5.0.1
-
Redland City Councilv4.1
-
Rockhampton Regional Councilv5.0.1 · v6.0.0
-
Sunshine Coast Councilv5.0.1 · v6.0.0
-
Unitywaterv5.0.1 · v6.0.0
-
Urban Utilities Queenslandv4.2 · v5.0.1
-
Whitsunday Regional Councilv5.0.1
Delivery

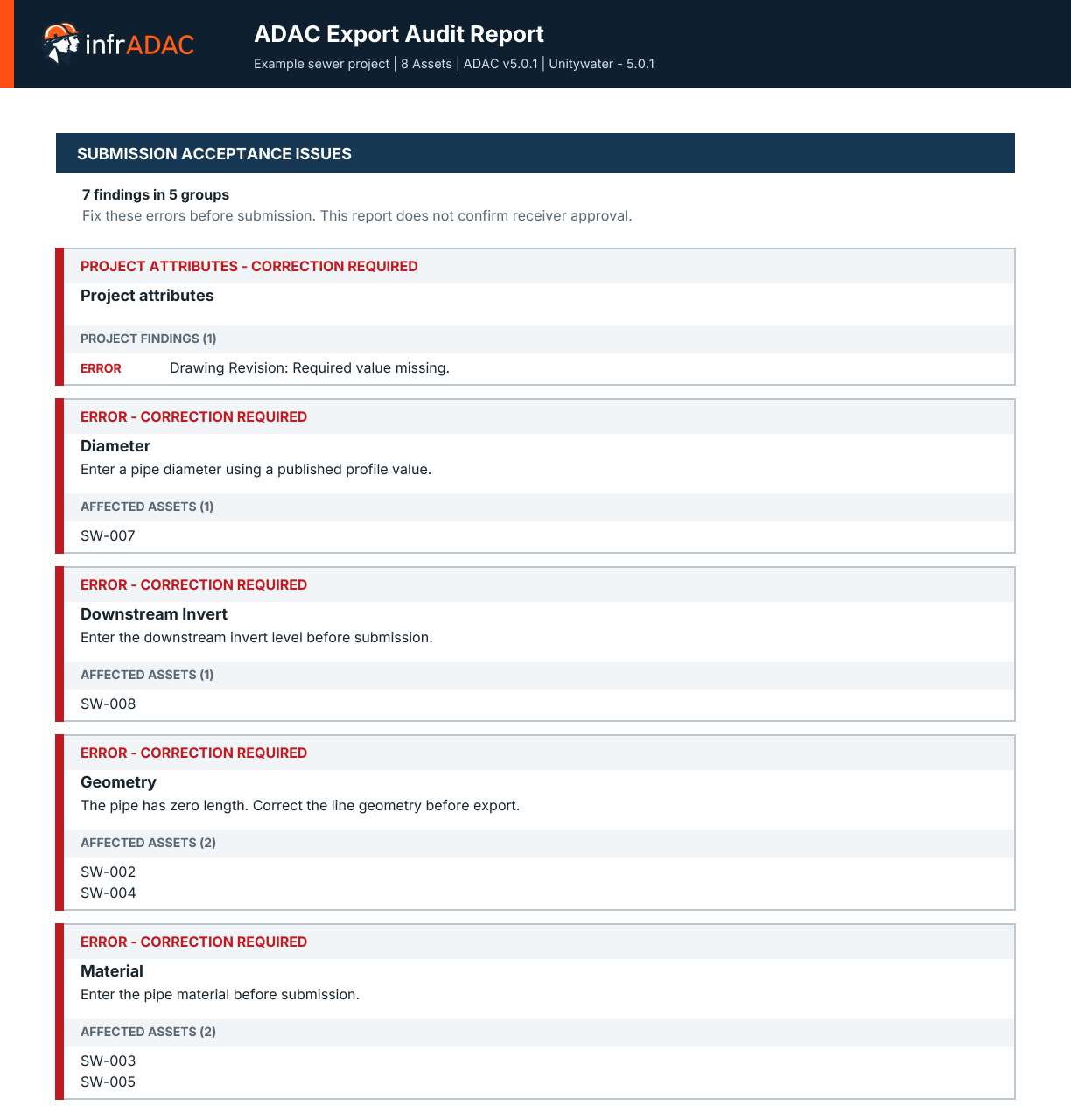

Resolve findings before handover.
Review the PDF report, correct the reported data and export the completed ADAC XML.
Included with every active DCAD licence
Continue the submission workflow in Map Pro.
Each active DCAD seat includes Map Pro access. The receiver profiles purchased for the Plugin remain available to the same account in Map Pro.
Licensing
Licence DCAD for the way your team works.
infrADAC DCAD is licensed annually per seat.
$600 AUD Annual, excluding GST
Computer Based
Assigned to one registered computer and included with the selected DCAD seat.
Floating
One annual Bolt-on for the selected DCAD licence pool with one active checkout for each purchased seat.
Network Floating
One annual Bolt-on for local network checkout from the selected DCAD licence pool.
